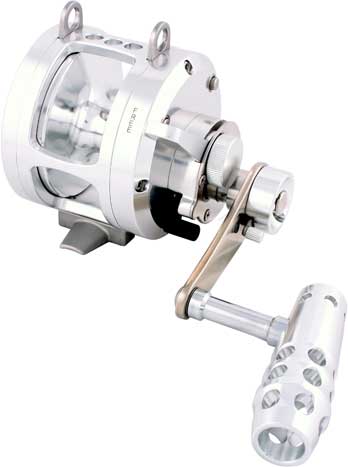

SEA EAGLE SERIES BIG GAME TROLLING REEL

Sea Eagle
Features:
  • 6061 - T6 machined one piece aluminum frame
  • Cold forged aluminum spool and side plates
  • Precision-machined stainless steel gears
  • Heavy duty stainless steel ratcheting clicker system
  • Smooth and durable drag performance
  • Shielded stainless steel ball bearings
  • Ergonomically-shaped power round knob for comfortable and sure grip
  • Excellent free spool
  • Serialized identification
We have taken the best features from Sea Wolf reels, to build another big game trolling reel with different appearance.  The Sea Eagle is a new high-performance series constructed with cutting edge materials and processing methods.  It features 6 sizes: 12, 20, 30, 50, 50WL, 80W.  Available in both Single Speed and Two Speed.


Sea Eagle Two Speed

  Model Gear Ratio Line Capacity
(Lb. Test/Yards)		 Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing
SE12 SE12
schematics (pdf)		 4.1:1 1.7:1 12/880 10.0 KGS 15.5 KGS 4 yes
SE20 SE20
schematics (pdf)		 4.3:1 1.7:1 20/690 12.2 KGS 14.2 KGS 4 yes
SE30 SE30
schematics (pdf)		 4.3:1 1.7:1 30/700 12.4 KGS 14.5 KGS 4 yes
SE30WL SE30WL
schematics (pdf)		 4.3:1 1.7:1 50/570 12.4 KGS 14.5 KGS 4 yes
  SE50W
schematics (pdf)		 3.6:1 1.3:1 50/850 16.6 KGS 21.6 KGS 4 yes
  SE50WL
schamatics (pdf)		 3.6:1 1.3:1 80/550 17.5 KGS 20.5 KGS 4 yes
  SE80W
schematics (pdf)		 2.5:1 1.3:1 80/950 22.0 KGS 25.0 KGS 4 yes


Sea Eagle One Speed
  Model Gear Ratio Line Capacity
(Lb. Test/Yards)		 Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing
  OSE12
schematics (pdf)		 4.1:1  12/880 10.0 KGS 15.5 KGS 4 no
  OSE20
schematics (pdf)		 4.3:1 20/690 12.2 KGS 14.2 KGS 4 no
  OSE30
schematics (pdf)		 4.3:1 30/700 12.4 KGS 14.5 KGS 4 no
  OSE50W
schematics (pdf)		 3.6:1 50/850 16.6 KGS 21.6 KGS 4 no
  OSE80W
schematics (pdf)		 2.5:1 80/950 22.0 KGS 25.0 KGS 4 no
