SEA MASTER SERIES BIG GAME JIGGING REEL

Features:
  • 6061 - T6 machined one piece aluminum frame
  • Cold forged aluminum spool and side plates
  • Precision-machined stainless steel gears
  • Heavy duty stainless steel ratcheting clicker system
  • Smooth and durable drag performance
  • Shielded stainless steel ball bearings
  • Ergonomically-shaped power round knob for comfortable and sure grip
  • Excellent free spool
  • Serialized identification


Sea Master Two Speed

  Model Gear Ratio Line Capacity
 Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing
(Lb. Test/Yards) (mm/M)

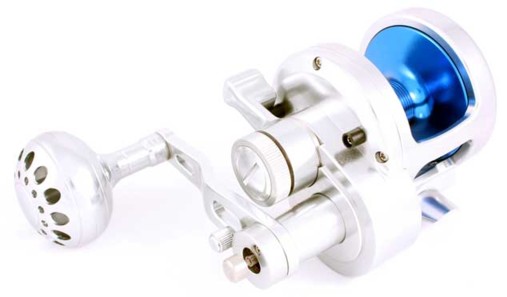

SM08 SM08
schematics (pdf)		 4.5:1 2.2:1 20/300 0.45/300 7.0 KGS 8.5 KGS 8 yes

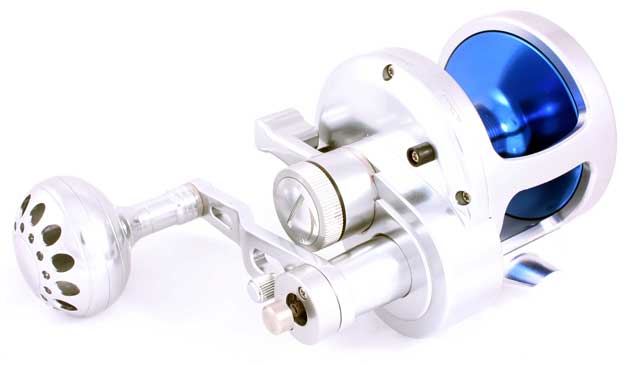

SM10 SM10
schematics (pdf)		 4.5:1 2.2:1 20/450 0.50/410 8.0 KGS 10.0 KGS 8 yes
  SM12
schematics (pdf)		 6.0:1 2.2:1 12/900 0.50/390 8.3 KGS 10.3 KGS 6 yes
  SM16
schematics (pdf)		 6.0:1 2.2:1 16/1000 0.50/600 8.3 KGS 10.3 KGS 6 yes
Sea Master One Speed
  Model Gear Ratio Line Capacity Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing		 Weight
(Lb. Test/Yards) (mm/M)
  OSM06
schematics (pdf)		 4.3:1 20/280 0.40/310 5.0 KGS 6.0 KGS 8+1 no
  OSM08
schematics (pdf)		 6.1:1 20/300 0.45/270 6.6 KGS 7.5 KGS 6 no 505 g
  OSM10
schematics (pdf)		 6.1:1 20/450 0.50/380 8.6 KGS 10.3 KGS 6 no 595 g
  OSM12
schematics (pdf)		 4.5:1 12/900 0.50/390 8.0 KGS 10.2 KGS 6 no 813 g
  OSM16
schematics (pdf)		 4.5:1 16/1000 0.50/600 8.3 KGS 10.3 KGS 6 no 843 g
